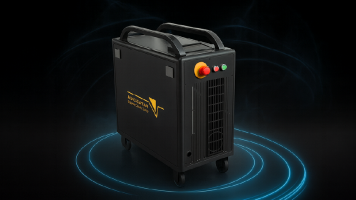

Laser Welding
Manual 3-in-1
Laser Equipment
With Air Cooling System
This manually operated machine is equipped with a laser system that provides three highly useful solutions for the metalworking industry.
This model makes the entire machine more compact, lighter, easy to transport, and suitable for indoor use and various environments.
Available models
PTLC3.1-1500W-3 in 1.
Highlights
Key Features of the Manual 3-in-1 Laser Equipment

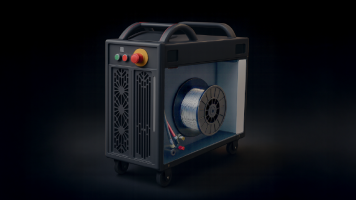

Integrated Wire
With Easy Access
Its smart design conceals the wire inside the machine, providing quick and easy access for faster and safer replacements.

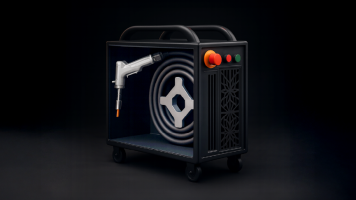

Protected Head
Storage
The head is stored inside the machine when not in use, remaining concealed and protected for greater safety and durability
3-in-1 Functionality
Engineered to cut, weld, and clean with equal efficiency, delivering versatility and practicality in a single system.
Practical Air
Cooling
The air cooling system simplifies maintenance, removes the need for water circuits, and ensures reliable
performance at all times.
Lightweight and Ergonomic Gun
Its lightweight design allows easy handling, providing greater comfort and precision during operation.
Low Energy Consumption
Engineered to operate with reduced power demand, optimizing energy use and lowering operating costs.
Compact and Efficient Design
Its reduced-size structure optimizes workspace, allowing easy installation in diverse environments without compromising performance.
Technical Information
A table with technical specifications for each model of the Manual 3-in-1 Laser Equipment.
| MODEL | PTLC-1500W-3 IN 1 |
|---|---|
|
LASER POWER |
1500W |
|
OPERATION MODE |
Continuous / modulation |
|
LASER WAVELENGTH |
1070NM |
|
POWER STABILITY
|
± 2% |
|
POWER SUPPLY |
220V / 380V |
|
MACHINE POWER SUPPLY
|
9KW |
|
AMBIENT HUMIDITY RANGE
|
70 % Non-condensing |
|
MAX. GAP BETWEEN PIECES
|
0.5 mm / 0.02in |
|
MAX. WELDING SPEED
|
120 mm/s / 5in/s |
|
SIZE (in) |
24*11*26 |
|
SIZE (mm) |
620*300*677,5 |
| MODEL | PTLC-1500W-3 IN 1 |
|---|---|
|
LASER POWER |
1500W |
|
OPERATION MODE |
Continuous / modulation |
|
LASER WAVELENGTH |
1070NM |
|
POWER STABILITY
|
± 2% |
|
POWER SUPPLY |
220V / 380V |
|
MACHINE POWER SUPPLY
|
9KW |
|
AMBIENT HUMIDITY RANGE
|
70 % Non-condensing |
|
MAX. GAP BETWEEN PIECES
|
0.5 mm / 0.02in |
|
MAX. WELDING SPEED
|
120 mm/s / 5in/s |
|
SIZE (in) |
24*11*26 |
|
SIZE (mm) |
620*300*677,5 |
* Reference values only.
| POWER | STAINLESS STEEL | CARBON STEEL | GALVANIZED PLATE | ALUMINIUM |
|---|---|---|---|---|
|
1500 W |
0.5 - 3.0 mm / 0.02 - 0.11 in |
05. - 2.5 mm / 0.02 - 0.10 in |
0.3 - 1.8 mm / 0.01 - 0.07 in |
|
| POWER | STAINLESS STEEL | CARBON STEEL | GALVANIZED PLATE | ALUMINIUM |
|---|---|---|---|---|
|
1500 W |
0.5 - 3.0 mm / 0.02 - 0.11 in |
05. - 2.5 mm / 0.02 - 0.10 in |
0.3 - 1.8 mm / 0.01 - 0.07 in |
|
* Reference values only.
