Laser Welding
Manual 3-in-1
Laser Equipment
Welding // Cutting // Cleaning
This manually operated machine is equipped with a laser system that provides three highly useful solutions for the metalworking industry.
Available models
PTLM3.1-1500W, 2000W & 3000W.
Highlights
Key Features of the Manual 3-in-1 Laser Equipment

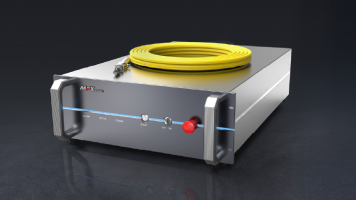

MaxPhotonics
X Series
We use X Series laser sources, recognized for their top quality and reliability. They meet the highest standards of North American regulations, guaranteeing stable and efficient performance in every application.

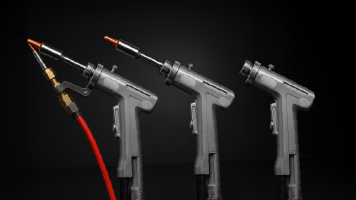

3-in-1 Functionality
A single unit that combines welding, cutting, and cleaning, streamlining processes and reducing the need for multiple machines.

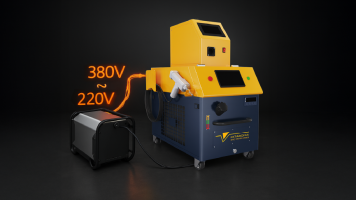

Extended
Voltage Range
Operates reliably from 220 to 380 V, adapting to different electrical setups without compromising performance.

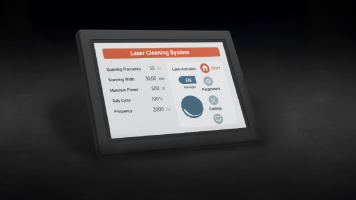

Integrated
Control System
Welding functions and parameters are integrated into the equipment. The user accesses these through an 7′′ touchscreen.
Efficient Water
Cooling System
The water cooling system keeps temperature stable, protecting components and ensuring continuous performance during extended periods of operation.
Compatible with Single or Dual Wire Feeders
The system can be adapted to use a single or double wire feeder, allowing thicker weld beads when required, without compromising stability or quality.
Application Versatility
Supports a wide range of metals, enabling precise and consistent welding on stainless steel, carbon steel, aluminum, copper, and galvanized sheets.
Technical Specification
A table with technical information for each model of the Manual 3-in-1 Laser Equipment.
| Modelo | PTLM3.1-1500W | PTLM3.1-2000W | PTLM3.1-3000W | |
|---|---|---|---|---|
|
LASER POWER |
1500W |
2000W |
3000W |
|
|
OPERATION MODE |
Continuous / modulation |
|||
|
LASER WAVELENGTH |
1070NM |
|||
|
POWER STABILITY |
± 2% |
|||
|
POWER SUPPLY |
220V / 380V |
|||
|
MACHINE POWER SUPPLY |
9KW |
10KW |
12KW |
|
|
AMBIENT HUMIDITY RANGE |
70 % Non-condensing |
|||
|
MAX. GAP BETWEEN PIECES |
0.5 mm |
|||
|
MAX. WELDING SPEED |
120 mm/s |
|||
|
SIZE (in) |
46*43*25 |
|||
|
SIZE (mm) |
1190*1100*650 |
|||
| Modelo | PTLM3.1-1500W | PTLM3.1-2000W | PTLM3.1-3000W | |
|---|---|---|---|---|
|
LASER POWER |
1500W |
2000W |
3000W |
|
|
OPERATION MODE |
Continuous / modulation |
|||
|
LASER WAVELENGTH |
1070NM |
|||
|
POWER STABILITY |
± 2% |
|||
|
POWER SUPPLY |
220V / 380V |
|||
|
MACHINE POWER SUPPLY |
9KW |
10KW |
12KW |
|
|
AMBIENT HUMIDITY RANGE |
70 % Non-condensing |
|||
|
MAX. GAP BETWEEN PIECES |
0.5 mm |
|||
|
MAX. WELDING SPEED |
120 mm/s |
|||
|
SIZE (in) |
46*43*25 |
|||
|
SIZE (mm) |
1190*1100*650 |
|||
* Reference values only.
| POWER | STAINLESS STEEL | CARBON STEEL | GALVANIZED PLATE | ALUMINIUM |
|---|---|---|---|---|
|
1500 W |
0.5 - 3.0 mm |
05. - 2.5 mm |
0.3 - 1.8 mm |
|
|
2000 W |
0.5 - 3.5 mm |
0.5 - 3.0 mm |
0.3 - 2.3 mm |
|
|
3000 W |
0.5 - 5 mm |
0.5 - 4.5 mm |
0.3 - 3.5 mm |
|
| POWER | STAINLESS STEEL | CARBON STEEL | GALVANIZED PLATE | ALUMINIUM |
|---|---|---|---|---|
|
1500 W |
0.5 - 3.0 mm |
05. - 2.5 mm |
0.3 - 1.8 mm |
|
|
2000 W |
0.5 - 3.5 mm |
0.5 - 3.0 mm |
0.3 - 2.3 mm |
|
|
3000 W |
0.5 - 5 mm |
0.5 - 4.5 mm |
0.3 - 3.5 mm |
|
* Reference values only.
