Fiber Laser Cutting Machines

PL-T Series

Fiber Laser Cutting Machine for Tubes

Tube cutting machine with a rectangular structure, practical and easy to position in the workspace. The cutting area is enclosed, making it safer for the user and their environment.

The design allows for loading and operating the equipment from both sides, facilitating implementation and providing a better user experience.

Available models
PL-6016T2, PL-6024T2, PL-6028T2, PL-6036T2/3, PL-9036T3, PL-12036T3.

Highlights

Key features of our PL-T Series

Automatic Loading &
Unloading System

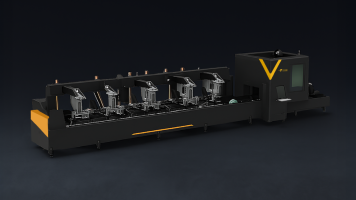

The machine requires only one operator to load heavy tubes. Loading and unloading are synchronized, avoiding unnecessary stops and tube collisions

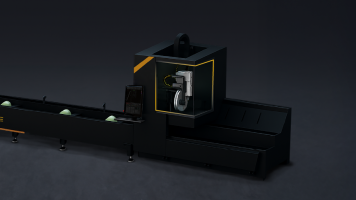

Automatic Unloading Rack

Once the cutting is nished, the system unloads the tubes automatically into the rack, optimizing the work ow and reducing operator intervention. Efficiency and continuity in each cycle.

Enclosed
Cutting Area

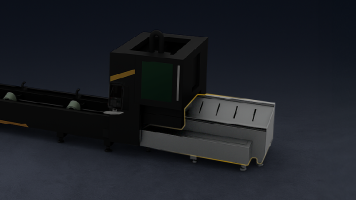

The tube laser cutting machine features a fully enclosed cutting area, which improves operational safety, reduces smoke exposure and protects the operator throughout the process.

Bevel Cutting
Option

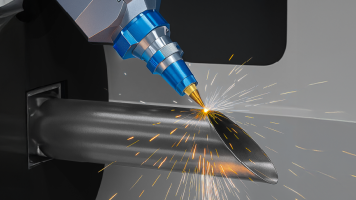

Equipped with a professional bevel cutting head, it supports high-speed cutting of 0-45 degree bevel, which can solve the problem of pipe welding The follow-up support improves the stabilly and precision of cutting.

Intelligent Autofocus System

Nesting Software Included

Pneumatic Tube Clamping

Technical Specifications

Chart with technical information for each model in the PL-T Series.

Model	PL-6016-T2	PL-6024-T2	PL-6036-T2	PL-6036-T3	PL-9036-T3	PL-12036-T3
Working area	L = 6,500mm / 21ft from 10mm to 160mm/ 0.03in to 6.3in from 10mm to 160mm/ 0.03in to 6.3in	L = 6.500/ 21ft from 20mm to 240mm / 0.8in to 9.4in from 20mm to 240mm / 0.8in to 9.4in	L = 6.500 / 21ft from 20mm to 350mm / 0.8in to 14in from 20mm to 250mm / 0.8in to 9.8in	L = 6.500/ 21ft from 20mm to 350mm / 0.8in to 14in from 20mm to 250mm / 0.8in to 9.8in	L = 9.500 / 31ft from 20mm to 350mm / 0.8in to 14in from 20mm to 250mm / 0.8in to 9.8in	L = 12.500 / 41ft from 20mm to 360mm / 0.8in to 14in from 20mm to 250mm / 0.8in to 9.8in
Dimensions (mm)	A 8700 B 2200	A 12500 B 2350	A 12800 B 2750	A 12800 B 2750	A 19500 B 3300	A 22500 B 3300
Dimensions (in)	A 342 B 86	A 492 B 92	A 500 B 108	A 500 B 108	A 767 B 130	A 885 B 130
Number of clamps	2	2	2	3	3	3
Laser power	1500 / 3000 / 6000			3000 / 6000
X-Y Positioning accuracy	0.05 mm / 0.002 in
X-Y Repositioning accuracy	0.03 mm / 0.001 in
X-Y Max. Linkage speed	60 m/min / 197 ft/min

Model	PL-6016-T2	PL-6024-T2	PL-6036-T2	PL-6036-T3	PL-9036-T3	PL-12036-T3
Working area	L = 6,500mm / 21ft from 10mm to 160mm/ 0.03in to 6.3in from 10mm to 160mm/ 0.03in to 6.3in	L = 6.500/ 21ft from 20mm to 240mm / 0.8in to 9.4in from 20mm to 240mm / 0.8in to 9.4in	L = 6.500 / 21ft from 20mm to 350mm / 0.8in to 14in from 20mm to 250mm / 0.8in to 9.8in	L = 6.500/ 21ft from 20mm to 350mm / 0.8in to 14in from 20mm to 250mm / 0.8in to 9.8in	L = 9.500 / 31ft from 20mm to 350mm / 0.8in to 14in from 20mm to 250mm / 0.8in to 9.8in	L = 12.500 / 41ft from 20mm to 360mm / 0.8in to 14in from 20mm to 250mm / 0.8in to 9.8in
Dimensions (mm)	A 8700 B 2200	A 12500 B 2350	A 12800 B 2750	A 12800 B 2750	A 19500 B 3300	A 22500 B 3300
Dimensions (in)	A 342 B 86	A 492 B 92	A 500 B 108	A 500 B 108	A 767 B 130	A 885 B 130
Number of clamps	2	2	2	3	3	3
Laser power	1500 / 3000 / 6000			3000 / 6000
X-Y Positioning accuracy	0.05 mm / 0.002 in
X-Y Repositioning accuracy	0.03 mm / 0.001 in
X-Y Max. Linkage speed	60 m/min / 197 ft/min

* Reference values only.

Layouts

Drawing with references for dimensions of PL-T Series Models
