Fiber Laser Cutting Machines
PL-C Series
Enclosed Design
Fiber laser cutting machine with a closed design. The observation window implements laser protective glass.
Additionally, the smoke produced during cutting is extracted from the inside, making it environmentally friendly.
Models available:
PL-3015-C, PL-6015-C, PL-6025-C, and PL-12025-C.
Highlights
Key features of our PL-C Series

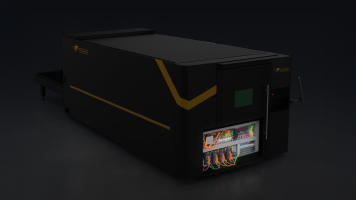

Protective Enclosure
Structure designed to ensure greater safety while, at the same time, offering complete control over waste and maintaining a clean working area.

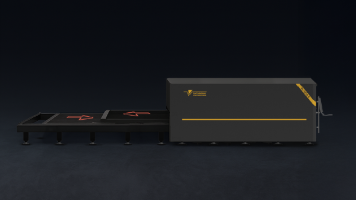

Dual Table
Double auto-exchanging shuttle table system
Interchangeable table that allows for a production efficiency improvement in just 15 seconds. The high precision of the table change is ensured by a pinion and rack system.
Industry 4.0 Technology
Automatic lubrication system.
Intelligent remote assistance.
Smart alarm system.
Low gas pressure alarm.
Robust Frame
The reinforced machine frame goes through a heat treatment process for welding stress relief and CNC machining centers. This guarantees less vibration and better accuracy.
Aluminum Beam
Aerospace-grade material with increased rigidity, significantly reducing beam deformation during high-speed operation, enhancing directional sensitivity and processing efficiency.
Highlighted
Features
Control
System
High-performance industrial water chiller, highly reliable and energy-efficient, of superior quality.
Water
Cooling
High-performance industrial water chiller, highly reliable and energy-efficient, of superior quality.
Technical Specifications
Chart with technical information for each model in the PL-C Series.
| Model | PL-3015-C | PL-6015-C | PL-6025-C | PL-12025-C |
|---|---|---|---|---|
|
Working Area (mm) |
3000 x 1500 |
6000 x 1500 |
6000 x 2500 |
12000 x 2500 |
|
Working Area (mm) |
118 x 59 |
236 x 59 |
236 x 98 |
472 x 98 |
|
Laser power (watts) |
1500 / 3000 / 6000 / 12000 / 20000 |
|||
|
X-Y Positioning accuracy |
0.05 mm / 0.001 in |
|||
|
X-Y Repositioning accuracy |
0.03 mm / 0.001 in |
|||
|
X-Y Max. Linkage speed |
110 m/min / 360 ft/min |
|||
| Model | PL-3015-C | PL-6015-C | PL-6025-C | PL-12025-C |
|---|---|---|---|---|
|
Working Area (mm) |
3000 x 1500 |
6000 x 1500 |
6000 x 2500 |
12000 x 2500 |
|
Working Area (mm) |
118 x 59 |
236 x 59 |
236 x 98 |
472 x 98 |
|
Laser power (watts) |
1500 / 3000 / 6000 / 12000 / 20000 |
|||
|
X-Y Positioning accuracy |
0.05 mm / 0.001 in |
|||
|
X-Y Repositioning accuracy |
0.03 mm / 0.001 in |
|||
|
X-Y Max. Linkage speed |
110 m/min / 360 ft/min |
|||
* Reference values only.
Layouts
Drawings with Dimensions for every PL-C Series Model
