Fiber Laser Cutting Machine
PL-AT Series
Combined Model

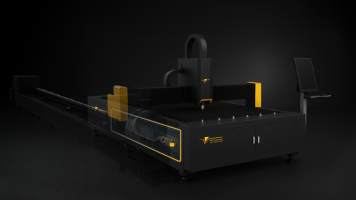

Combined fiber laser cutting machines are state-of-the-art equipment that utilize two work areas to process sheet metal and tubes with greater speed and precision, optimizing productivity and efficiency across various industrial applications.
Highlights
Key features of our PL-AT Series
Pneumatic Clamping
System Self-centering, fast, and secure clamping mechanism. Ensures enhanced stability and precision during cutting.

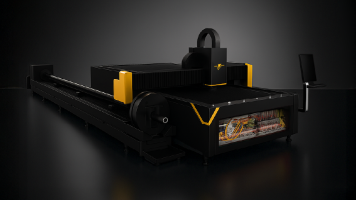

Sheet Metal and Tube CuttingSheet Metal and Tube Cutting
The intelligent bridge design and laser cutting head engineering ensure efficient operations with top-quality results for production requiring both sheet metal and tube processing.
Automatic
Focusing
Control
System
Water
Cooling
Technical Specifications
Chart with technical information for each model in the PL-AT Series.
| Model | PL-3015-AT | PL-6015-AT | PL-6025-AT | ||
|---|---|---|---|---|---|
|
Working area (sheet) (mm) |
3,000 x 1,500 |
6,000 x 1,500 |
6,000 x 2,500 |
||
|
Working area (sheet) (in) |
118 x 59 |
236 x 59 |
236 x 98 |
||
|
Working area (tube) |
L = 6,000mm / 236 in  from 20mm to 240mm / 0.8in to 9.44in from 20mm to 240mm / 0.8in to 9.44in |
||||
|
Laser power (watts) |
1500 / 3000 / 6000 |
3000 / 6000 |
|||
|
X-Y Positioning accuracy |
0.05 mm / 0.001in |
||||
|
X-Y Repositioning accuracy |
0.03 mm / 0.001in |
||||
|
X-Y Max. linkage speed |
100 m/min / 360 ft/min |
||||
| Model | PL-3015-AT | PL-6015-AT | PL-6025-AT | ||
|---|---|---|---|---|---|
|
Working area (sheet) (mm) |
3,000 x 1,500 |
6,000 x 1,500 |
6,000 x 2,500 |
||
|
Working area (sheet) (in) |
118 x 59 |
236 x 59 |
236 x 98 |
||
|
Working area (tube) |
L = 6,000mm / 236 in from 20mm to 240mm / 0.8in to 9.44in from 20mm to 240mm / 0.8in to 9.44in |
||||
|
Laser power (watts) |
1500 / 3000 / 6000 |
3000 / 6000 |
|||
|
X-Y Positioning accuracy |
0.05 mm / 0.001in |
||||
|
X-Y Repositioning accuracy |
0.03 mm / 0.001in |
||||
|
X-Y Max. linkage speed |
100 m/min / 360 ft/min |
||||
* Reference values only.
Layouts
Drawing with references for dimensions of PL-AT Series Models
